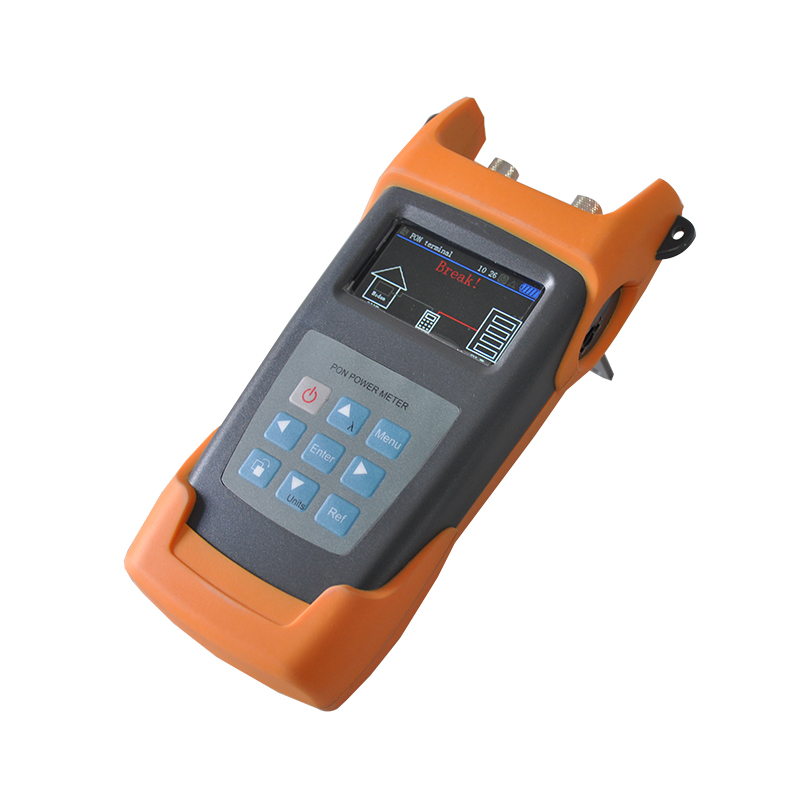

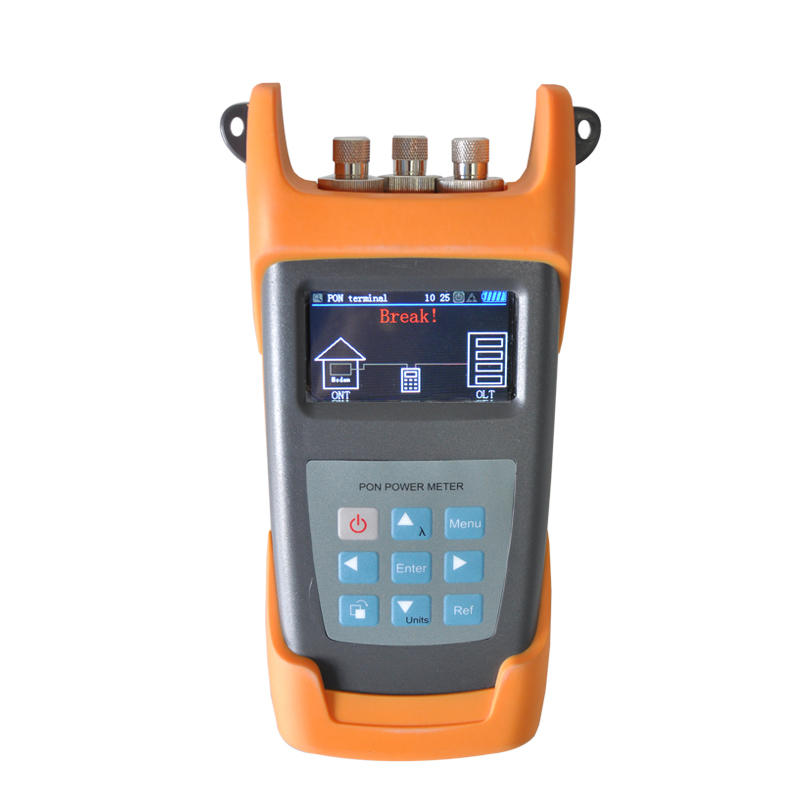

3229 PON Termination Tester is newly designed fiber optic tester, it aims at PON network installation, PON network maintenance. It can show 6 states of ONT and OLT.It can find problem of PON network easily
Product Description
* Test 6 state of ONT and OLT.
* Providing 1310nm and 1490nm wavelengths optical power test.
* Used in Burst mode measurement of 1310nm upstream.
* 10 minutes Auto-off function can be activated or deactivated
* AA alkaline and AC adapter for power supply,Rechargeable Battery is optional
* Support English and Chinese
* Threshold can be set
* Providing VFL function
Specification
Model
3229 PON Termination Tester
Test mode
6 state (1.On Line,2.Break,3.ONT Bad,4.No Power,5.Fall Off,6.ONT Fatal)
Insertion Loss(dB)
≤1.5

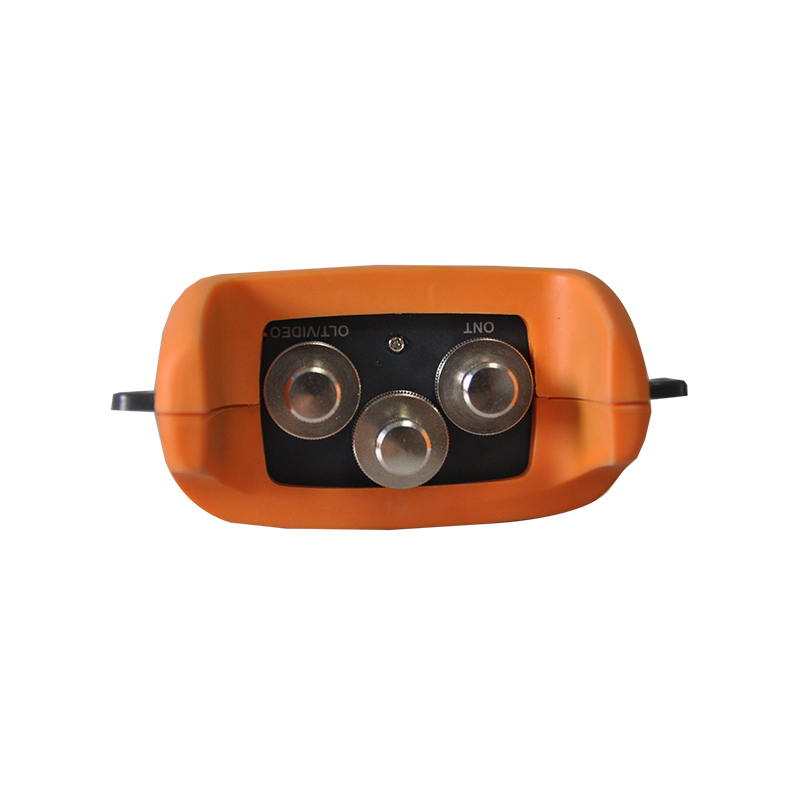

Optical Connector
SC/PC (FC, SC, ST available)
PON test mode
1310 upstream
1490 downstream
Measurement Range(dBm)
+10 to -35
+12 to -40
OPM Uncertainty (dB)
≤0.5
Calibration Wavelength（nm）
1310/1490/1550/1625
Display resolution(dB)
0.01
Display type
Color TFT
Power supply
Rechargeable Battery/AC power adapter/Alkaline battery
