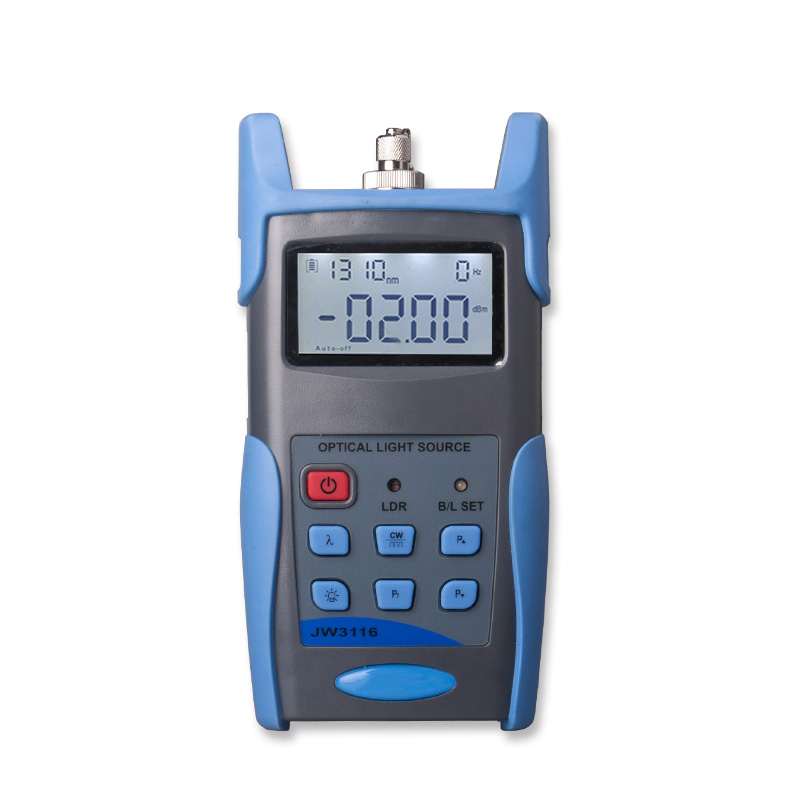

BST-OLS-3116 Handheld Adjustable Light Source
    Publish time 2021-10-23 12:00
BST-OLS-3116 Handheld Adjustable Light Source

3116 Handheld Adjustable Light Source is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with 3216 handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. The 3116 provides 1 to 4 wavelengths and output power can be adjustable on customer requests. Also the 3116 features good appearance, good touch feeling and considerate humanity design.

Product Description

* Wave ID information can be transmitted when used with 3216 Optical Power Meter.

* Tone generation, 270HZ,330HZ,1KHZ,2KHZ

* Output power can be adjustable

* Output power value is shown on LCD display

* Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)

* AA alkaline and AC adapter for power supply

* Low battery indication

Specification

Model

3116

Operating wavelength（nm）

1310/1550;1310/1490/1550/1625（others specify on requests）

Applicable fiber

SM，MM

Laser type

FP-LD(others specify on   requests)

Output Power（dBm）

-5~-12dBm（can be adjustable）

Adjustable step size（dBm）

＜0.5

Stability(dB，30min，20℃)

0.15

Modulation（Hz）

CW， 270，330，1K，2K

Fiber Port

FC/PC

Alkaline Battery

3*AA，1.5V

Power Supply Adaptor(V)

8.4

Battery Operating time(h)

45

Operation Temperature(℃)

-10～+60

Storage Temperature(℃)

-25～+70

Outline size（mm）/weight

180*90*45(250g)

Standard Package

MODEL

INCLUDES

All 3116 Models

3116 Optical Light   Source, 3pcs 1.5V batteries, AC Adaptor, User Manual and Soft carrying case.
