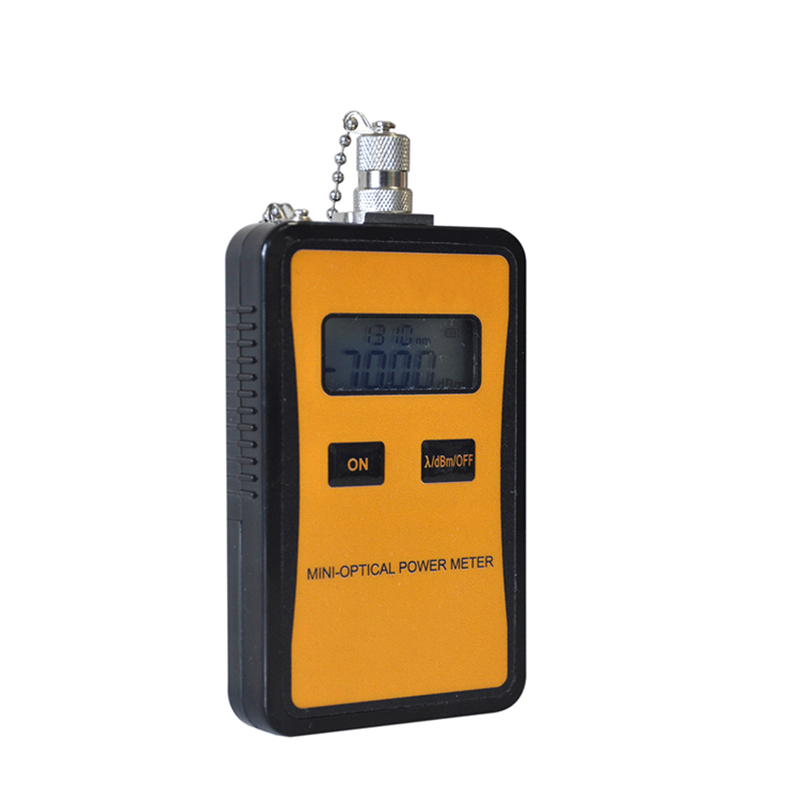

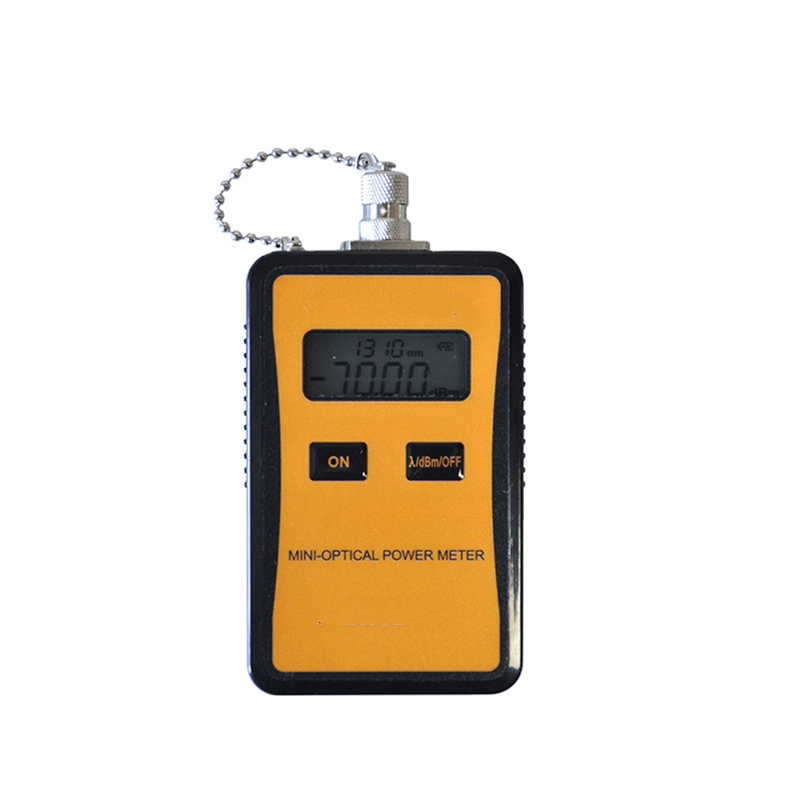

3205 mini handheld optical power meter is the most lightweight and compact in size testing instrument. It features ease-of-use and economy advantages and can be used for absolute power measurement in optical fibers. 3205 in combination with the 3110 mini handheld light source become the most portable and advantageous testing pair.
Product Description
*The most compact in size, ideal for field operation
*Power measurements in dBm and mw.
*10 minutes Auto-off function conserving battery life
Applications
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specification
Type
3205A
3205C
Wavelength(nm)
800~1700nm
Detector
InGaAs
Measurement Range (dBm)
-70~+6
-50~+26
Uncertainty
±5%
Calibrated Wavelength(nm)
850,1300,1310,1490,1550,1625
Resolution(dB)
0.01

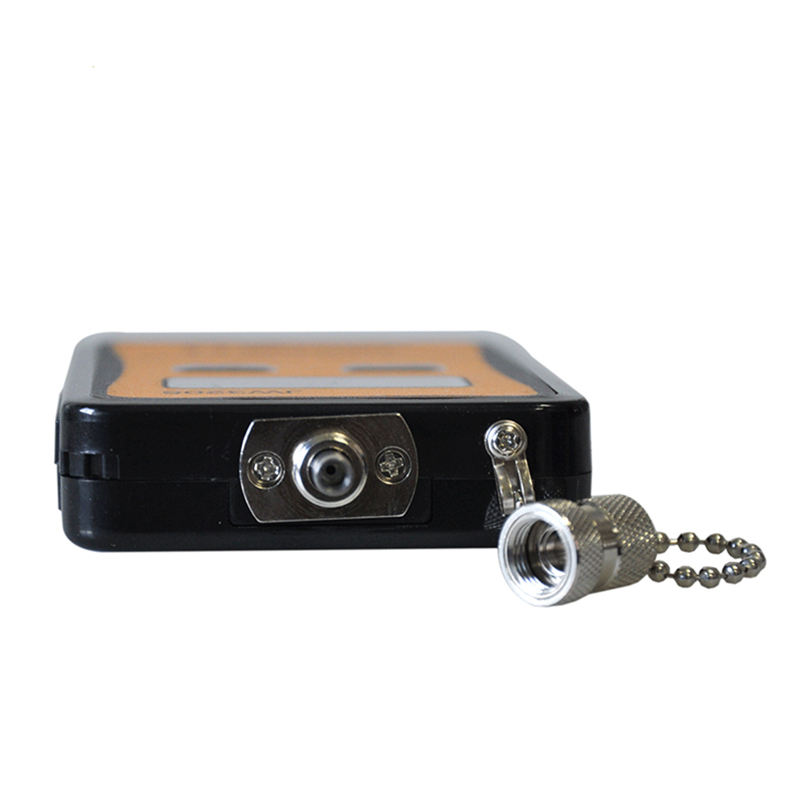

Optical Connector
FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply
Alkaline Battery
Battery Operating Time
360 hours with three 1.5V batteries
Operating Temperature(℃)
-10 ~ +60
Storage Temperature(℃)
-25 ~ +70
Relative Humidity
0 to 95% (non-condensing)
Dimension(mm)
115X60X20
Weight(g)
105
Standard Packages
MODEL
INCLUDES
All 3205 Models
3205 Optical Power Meter, Alkaline battery, Instruction Manual, Cotton swabs and Protective Holster.
