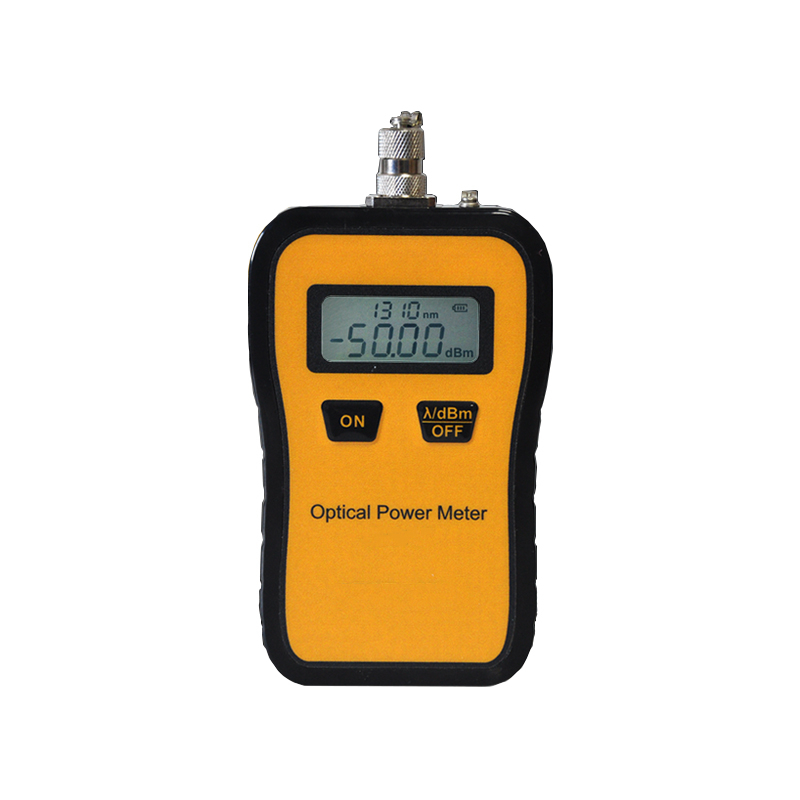

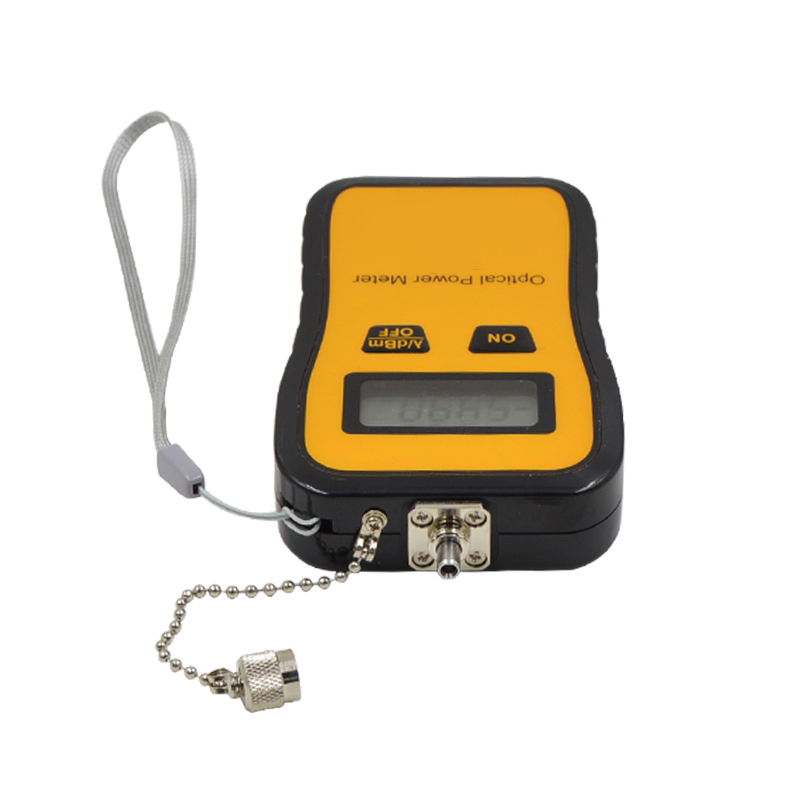

3402 Optical Power Meter is a highly cost-effective portable power meter and it’s newly launched by our Company. It can be used for the optical power measurement within the wavelength 800～1700nm. 3402 also has a wide measurement range which is more than 70dB. It’s designed with the common wavelength calibration points, such as 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm. The instrument is widely used in fiber-optic link construction, testing and maintenance.
Product Description
*Simple user interface
*mall size, easy to carry
*Wide testing range
*Automatic reminding of low battery
Applications
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specification
Type
3402A
3402C
Wavelength(nm)
800~1700nm
Detector
InGaAs
Measurement Range (dBm)
-70~+6
-50~+26
Uncertainty
±0.25
Calibrated Wavelength(nm)
850,980,1300,1310,1490,1550
Resolution(dB)
0.05

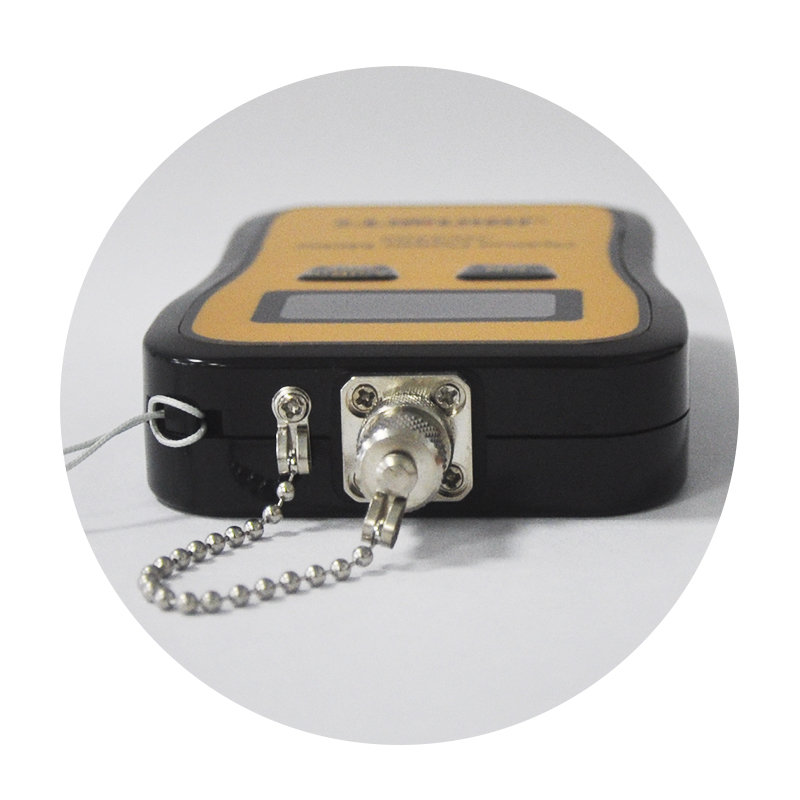

Optical Connector
FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply
Alkaline Battery(3 AAA 1.5V batteries)
Battery Operating Time
300 h with 1.5V Battery(3)
Operating Temperature(℃)
-10 ~ +60
Storage Temperature(℃)
-25 ~ +70
Relative Humidity
0 to 95% (non-condensing)
Dimension(mm)
166x106x20
Weight(g)
90
Standard Packages
MODEL
INCLUDES
All 3402 Models
3402 Optical Power Meter, User Manual, swabs and Soft carrying case.
