BST-OPM-3208 Handhold fiber Optical Power Meters
    Publish time 2021-10-23 12:00
BST-OPM-3208 Handhold fiber Optical Power Meters

3208 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.

Product Description


*User self calibration function

*Comfortable LCD display and optional backlight LCD display supports night operation

*Power measurements in dBm or mw and insertion loss in dB

*Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries

*10 minutes Auto-off function can be activated or deactivated.

Applications

Maintenance in Telecom

Maintenance CATV

Fiber Optic Lab Testing

Other Fiber Optic Measurements

Specification


Type

3208A

3208C

Wavelength(nm)

800~1700nm

Detector

InGaAs

Measurement  Range   (dBm)

-70~+6

-50~+26

Uncertainty

±5%

Calibrated   Wavelength(nm)

850,980,1300,1310,1490,1550

Resolution(dB)

0.01

Optical Connector

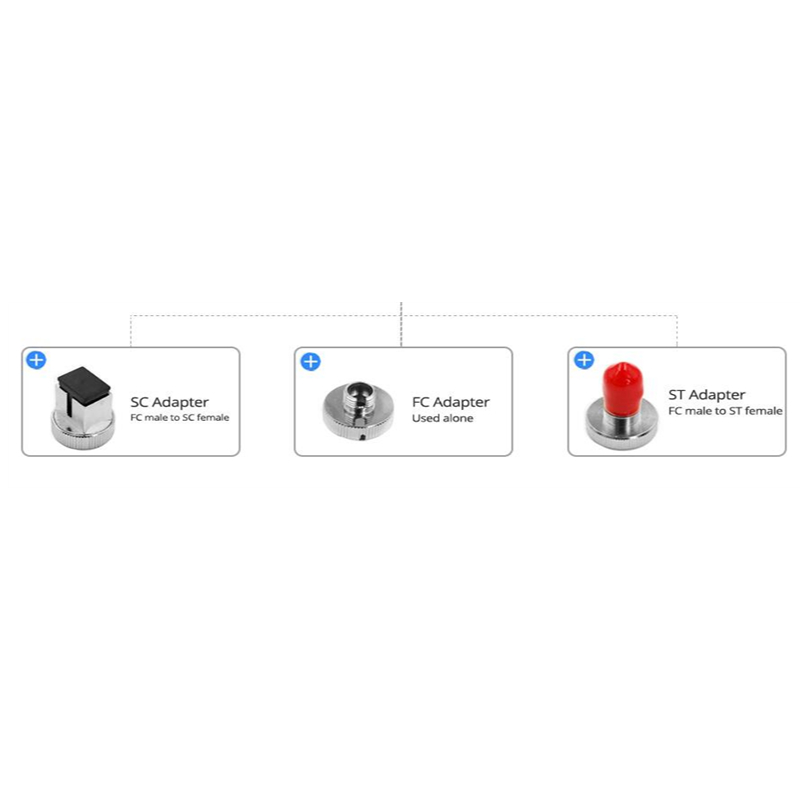

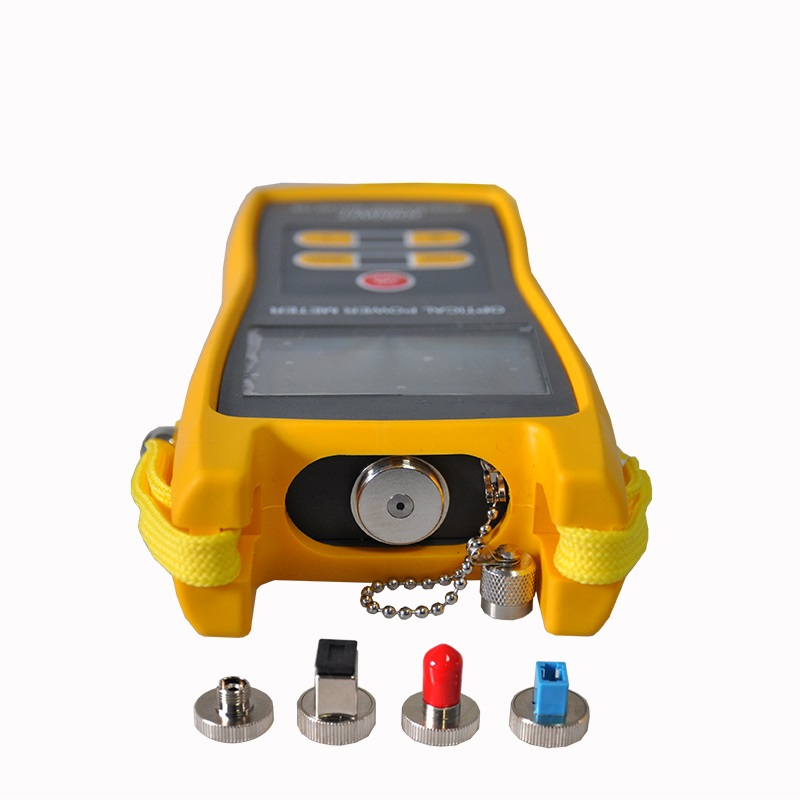

FC(interchangeable   SC,ST) / as well as 2.5mm universal

Power Supply

Alkaline Battery(3 AA   1.5V batteries)

Battery Operating Time

240 h with 1.5V   Battery(3)

Operating Temperature(℃)

-10 ~ +60

Storage Temperature(℃)

-25 ~ +70

Relative Humidity

0 to 95%   (non-condensing)

Dimension(mm)

175x82x33

Weight(g)

310

Standard Packages

MODEL

INCLUDES

All 3208 Models

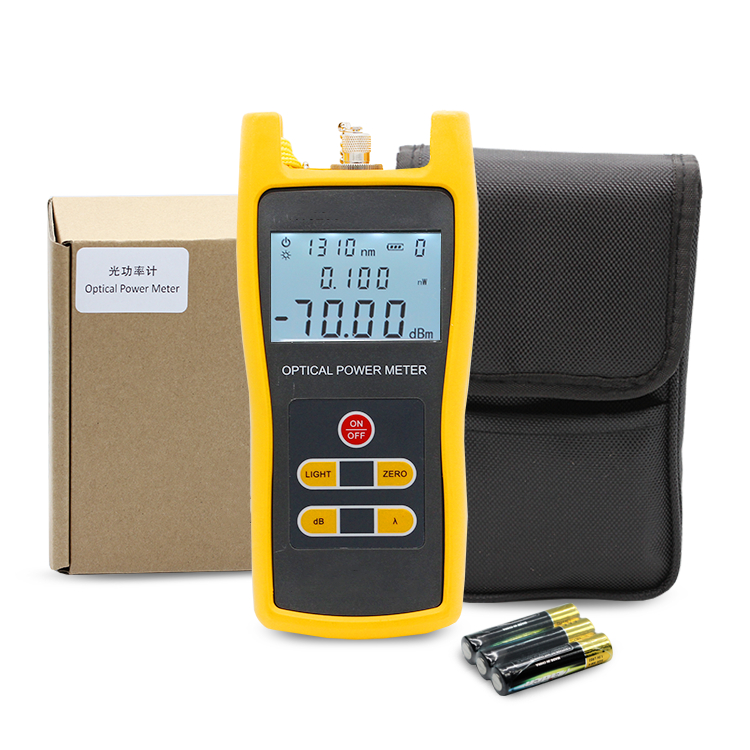

3208 Optical Power   Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, Cotton swabs   and Soft carrying case.
