Cabling Cable GJPFJH Indoor multi cores and building generic cabling fiber ftth opticala cable
Product Description:

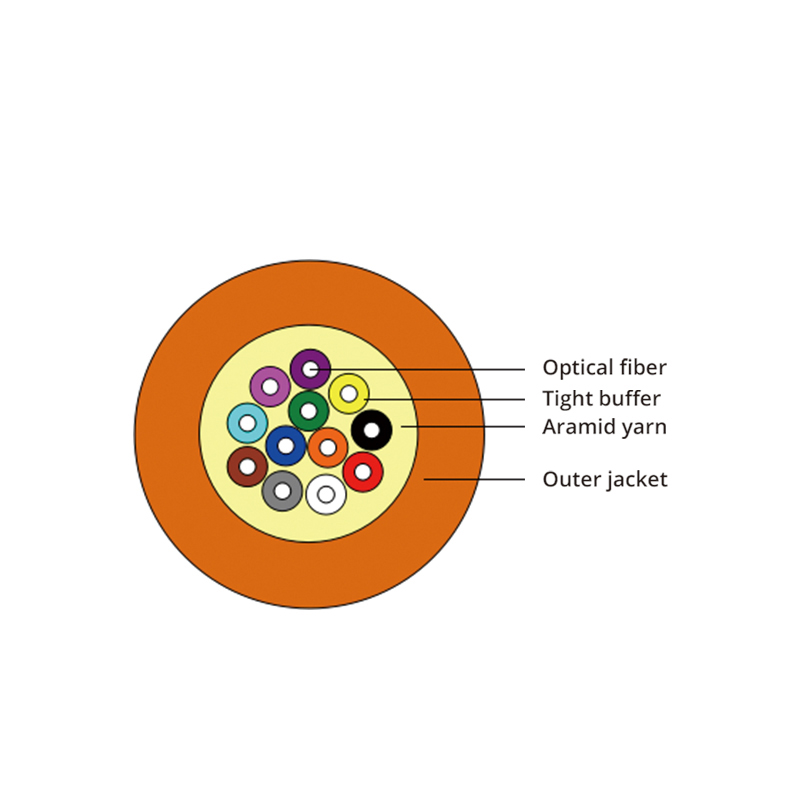

GJPFJH (Tightbuffer fiber structure, Aramid yarn strengh member, LSZH sheath)
Standards:
YD/T 1258. 4-2005Indoor fiber optical cable Dual core cable
Technical Parameters(Typical Value):
| The way of Cabling | Fiber Count | Specifications | Weight (kg/km) | Tensile(N) | Crush(N) | Bending Radius(mm) |
| (mm) | Long term | Short term | Long term | Short term | Static | Dynamic |
| Level | 4 | 4.7 | 19 | 130 | 440 | 200 | 1000 | 10D | 20D |
| Level | 6 | 5. 2 | 25 | 130 | 440 | 200 | 1000 | 10D | 20D |
| Level | 8 | 5. 8 | 29 | 130 | 440 | 200 | 1000 | 10D | 20D |
| Level | 12 | 6. 3 | 35 | 130 | 440 | 200 | 1000 | 10D | 20D |
| Vertical | 4 | 5. 0 | 22 | 200 | 660 | 300 | 1000 | 10D | 20D |
| Vertical | 6 | 5. 5 | 27 | 200 | 660 | 300 | 1000 | 10D | 20D |
| Vertical | 8 | 6. 0 | 31 | 200 | 660 | 300 | 1000 | 10D | 20D |
| Vertical | 12 | 6. 5 | 37 | 200 | 660 | 300 | 1000 | 10D | 20D |
Note：
1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.PVC and other material can be used assheath according to the customer’s demands.
