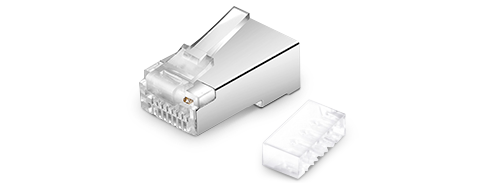

Cat6 RJ45 Shielded Modular Plug with Loading Bar - Stranded Cables
Product Description
Cat6 RJ45 modular plug is perfect for terminating cat6 stranded cables. These modular plugs are manufactured from high-impact clear polycarbonate to withstand everyday wear and tear, and the contacts are 50 micron gold for optimum signal transmission. In addition, two-piece design with loading bar ensures easy and accurate assembly.
Characteristics
50μ'' Gold Plated Contacts Maintains a Superior and Reliable Data Transmission
3-Prong Contacts Pins Can Straddle Stranded Conductors Properly
Metal-shielded Shell Eliminate Cross-talk and Prevents Electromagnetic Interference (EMI)
Terminate and Crimp with Any Standard RJ45 Crimp Tool
Support POE and Used for CCTV, Routers, Switches, Printers, Hubs, PC, and Servers
Specification
Product Type | Modular Plug | Connector | RJ45 Male |
Cable Type | Cat6 STP | Data Rate Support | 1000Base-T |
Compatibility | Stranded Cables | Package | 50pcs/pack |
Wire Gauge Supported | 26AWG | Wiring Scheme | T568A & T568B |
| Loading Bar | Yes | Material | Polycarbonate |
Operating Temperature | -10°C to 60°C (14°F to 140°F) | Approvals | RoHS Compliant |
Product Highlights
Cat6 Shielded RJ45 Modular Plug Designed for Cabling
Support high bandwidth up to 250 Mbps with 1000Base-T transfer rate. | Compatible with cat6 shielded stranded network cable. | High performence and meet with T568A and T568B wiring schemes. |
High Performence Cat6 RJ45 Shielded Modular Plug Details
| Two-piece Design with Loading Bar The two-piece design enables the cable to quickly lock the position, which makes it easier to press the shielded modular plug. |
| Trigeminal Chip & 50 Microinches Gold-plated Contacts Trigeminal gold plated phosphor bronze contacts provides a fully contact with wire conductor and ensure excellent conductivity. |
| Copper Alloy Shielded Shell Protects your network from signal loss and electromagnetic interference, provides conductive path for grounding. |
| Robust Shrapnel Polycarbonate materials improve the toughness of the modular plug, ensure the modular plug shrapnel without breakage. |
Customize Your Lengths of Cat6 Shielded Network Cables
