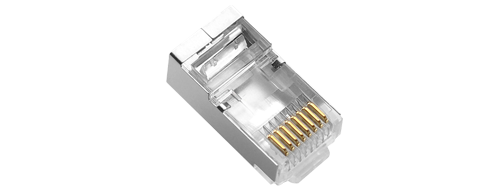

Cat5e RJ45 Shielded Modular Plug with 50 Micron Golded Contacts
Product Description
RJ45 modular plug is used on stranded conductor cat5e cable. These modular plugs are manufactured from high-impact clear polycarbonate to withstand everyday wear and tear, and the contacts are 50 micron gold for optimum signal transmission.
Characteristics
50μ'' Gold Plated Contacts Maintains a Superior and Reliable Data Transmission
3-Prong Contacts Pins Can Straddle Stranded Conductors Properly
Metal-shielded Shell Eliminate Cross-talk and Prevents Electromagnetic Interference (EMI)
Terminate and Crimp with Any Standard RJ45 Crimp Tool
Support POE and Used for CCTV, Routers, Switches, Printers, Hubs, PC, and Servers
The Connector Locking Clip Can be Bent Many Times Without Breaking
Specification
Product Type | Modular Plug | Connector | RJ45 Male |
Cable Type | Cat5e STP | Data Rate Support | 1000Base-T |
Compatibility | Stranded Cables | Package | 50pcs/pack |
Wire Gauge Supported | 24AWG | Wiring Scheme | T568A & T568B |
Operating Temperature | -10°C to 60°C (14°F to 140°F) | Approvals | RoHS Compliant |
Product Highlights
Cat5e Shielded RJ45 (8P8C) Modular Plug Designed for Cabling System
Support high band width up to 1000 Mbps under 350MHz transfer rate. | Compatible with cat5e unshielded stranded network cable. | High performence and meet with T568A and T568B wiring schemes. |
High Performence Cat5e RJ45 Unshielded Modular Plug Details
| Trigeminal Chip Trigeminal contact provides a fully contact with wire conductor for reinforced durability and a long life. |
| Copper Alloy Shielded Shell Protects your network from signal loss and electromagnetic interference, provides conductive path for grounding. |
| 50 Microinches Gold Contacts Gold plated phosphor bronze contacts ensure excellent conductivity, durability, and outstanding resistance against wear or corrosion. |
| Robust Shrapnel Polycarbonate materials improve the toughness of the modular plug, ensure the modular plug shrapnel without breakage. |
Customize Your Lengths of Cat5e Shielded Network Cables
