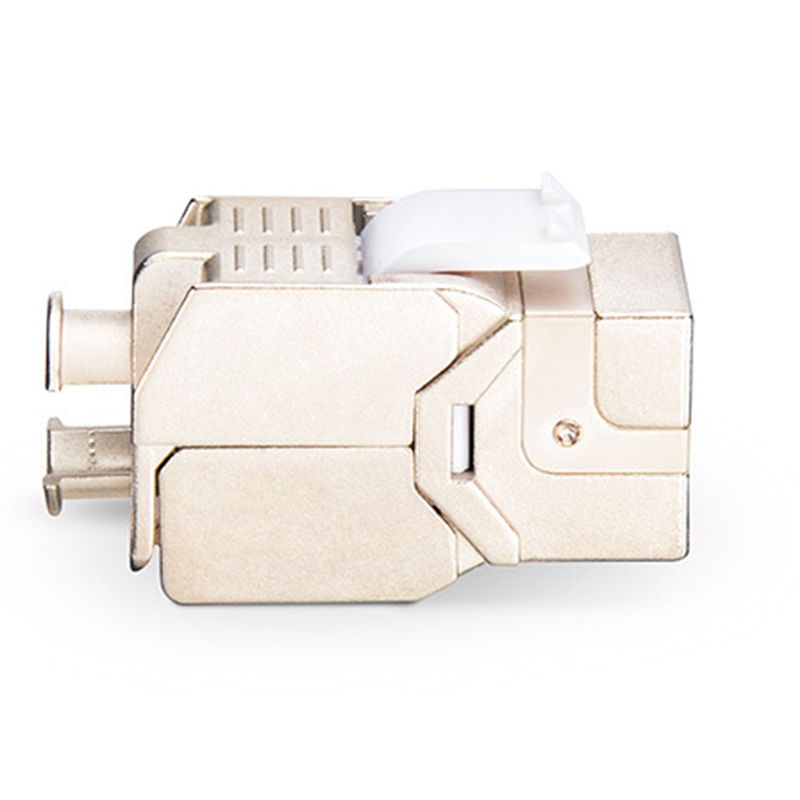

Toolless Shielded Keystone Jack for Cat6 Ethernet Networking
    Publish time 2021-10-29 18:26
Toolless Shielded Keystone Jack for Cat6 Ethernet Networking

Toolless Shielded Keystone Jack for Cat6 Ethernet Networking

Product Description

Bestbondtech.com provides keystone Cat6 toolless style connectors which make for a simple installation without the need for a punch down tool. Toolless keystone jacks are an ideal solution for terminating and connecting network cable.

Specification


ProductType

Cat6 Keystone Jack

Color

Metal silver

Connector

RJ45 Female

Termination Type

Toolless

ShieldingType

Shielded

Data Rate Support

1000Base-T

Wire Gauge Supported

22-26AWG Cable

Wiring Scheme

T568A & T568B

Housing Material

Zinc Alloy

Dimensions  (HxW)

16×14.5mm

Operating Temperature

-10°C  to 60°C (-14°F to 140°F)

Contact Plating Thickness

6  Microinches


Product Highlights

Cat6 Toolless Keystone Network Jack Module



Easy installation requires no punch down tool

Use with a wall-plate for network wiring installs

Designed for high-speed network applications







Shielded STP Cover

Designed for protection from external radiated noise



Gold Plated RJ45 Contacts

On the jack contacts for durability and a long lifespan



T568A/B Wiring Scheme

Color-wiring diagram for ease of installation






Installation for STP Toolless Keystone Module

Designed for superior performance, this jack provides a simple process to connect your cable and will work with wall plates or patch panel.




Jacks are available in 8 colors making network identification

or organization a snap

Simple installation without the need for a punch

down tool.

Use for any unloaded keystone wall plate or patch

panel to your needs.
