Publish time 2021-10-23 12:45

Apply to optical fiber sensing systems, communication systems, LAN and etc.

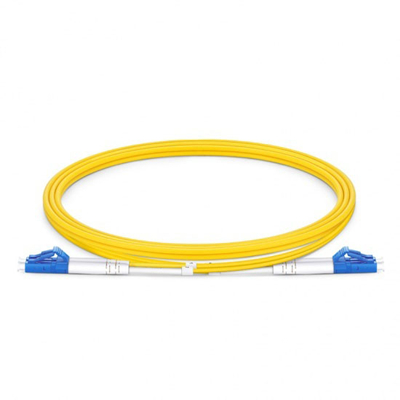

LC UPC to LC UPC Duplex OS2 Single Mode 2.0mm Fiber Optic Patch Cable

Product information

Product Description

High Quality and Cost-Effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Connector Type：LC UPC to LC UPC	Fiber Grade：G.657.A1 (Compatible with G.652.D)
Fiber Mode：OS2 9/125μm	Wavelength：1310/1550nm
Insertion Loss：≤0.3dB	Return Loss：≥50dB
Min. Bend Radius (Fiber Core)：10mm	Min. Bend Radius (Fiber Cable)：10D/5D (Dynamic/Static)
Attenuation at 1310 nm：0.36 dB/km	Attenuation at 1550 nm：0.22 dB/km
Fiber Count：Duplex	Cable Diameter：2.0mm
Cable Jacket：PVC	Polarity：A(Tx) to B(Rx)
Operating Temperature：-20~70°C	Storage Temperature：-40~80°C

Item Spotlights

1.G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius

2.Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss

3.Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use

4.Designed for High Bandwidth and Transmission Rate over Long Distances

5.Compliant to IEC-61754 and TIA-604 (FOCIS)

Network Connectivity

10G-10G Structured Fiber Cabling for Campus Network with Fiber Patch Cables, MTP® Cables and FHD Series Cable Management

Product Highlights

Carrier-grade Cable with Guaranteed Quality

Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirments.


Fiber Count	Duplex / 2 Fibers	Duplex / 2 Fibers	Duplex / 2 Fibers	Duplex / 2 Fibers	Duplex / 2 Fibers	Duplex / 2 Fibers
Fiber Grade	G.657.A1	Corning G.657.A1	Corning G.657.A1	G.657.A1	G.657.A2	Corning G.657.A1
Jacket	PVC	PVC	PVC	PVC	TPU	LSZH
Cable Diameter	2.0mm	2.0mm	2.0mm	3.0mm	4.0mm	7.0/2.0mm (Outer/Inner)
Insertion Loss	≤0.3dB	≤0.12dB	≤0.2dB	≤0.3dB	≤0.3dB	≤0.3dB
Min. Bend Radius (Fiber Cable)	10D/5D (Dynamic/Static)	10D/5D (Dynamic/Static)	10D/5D (Dynamic/Static)	10D/5D (Dynamic/Static)	20D/10D (Dynamic/Static)	20D/10D (Dynamic/Static)
Operating Temperature	-20~70°C	-20~70°C	-20~70°C	-25~70°C	-40~85°C	-20~70°C
Application	Indoor, General Building	Indoor, High Density DC	Indoor, High Density DC	Indoor, Hazardous Areas	Outdoor, Harsh Environment	Outdoor, Heavy Industrial
