Cat6 Bulk Ethernet Network Cable FTP, Stranded, PVC CM, 26AWG
    Publish time 2021-10-29 18:26
Cat6 Bulk Ethernet Network Cable FTP, Stranded, PVC CM, 26AWG

Cat6 Ethernet Bulk Cable, 1000ft (305m), UL Listed, 26AWG Stranded Pure Bare Copper Wire, 550MHz, Unshielded (FTP), PVC CM (Blue)

Product Description

The next step up from standard Cat5e cable, Cat6 is a "4 twisted pairs" network cable used for 1000Base-T Ethernet applications up to 550MHz, can also provide at speed of 10G rate with 30-40m transmission distance. This cable is perfect to all your advanced networking installations.

Characteristics

Pure Bare Copper Transmit Faster while Lasting the Distance than CCA

Tangle and Twist-free Packaging

Marked Every 1m (3.28ft) on Cable Makes Measuring Easy

Support PoE, PoE+ (IEEE 802.3af/at)

CE, Reach, RoHS Certified and UL Listed

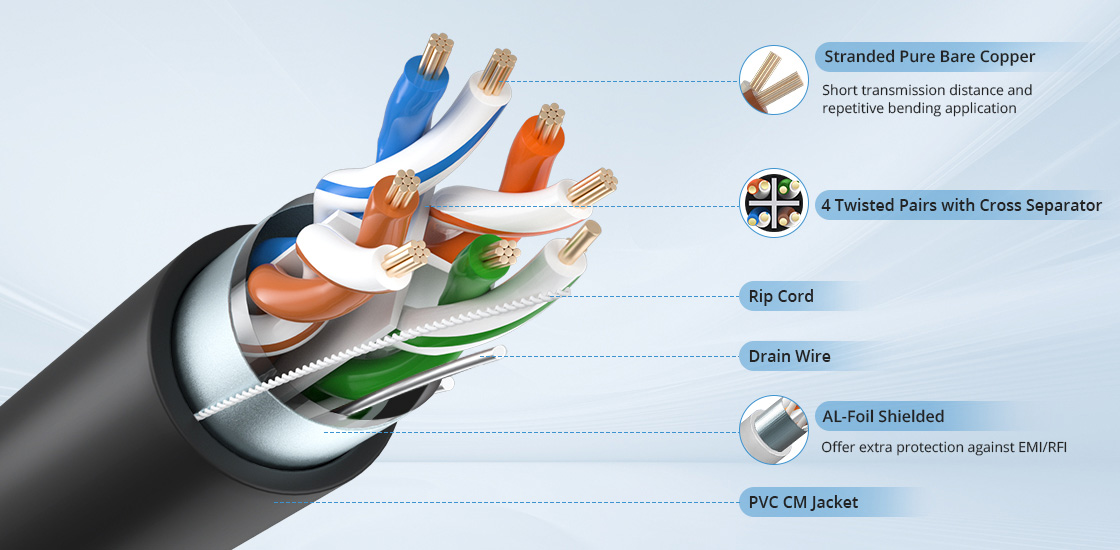

Shielding Helps Eliminate Cross-talk and Prevents Electromagnetic Interference (EMI)

CM Rated (in-Wall) for in-Wall Use for Commercial Class Buildings

Specification


Cable Type

Category 6

Shielding Type

FTP

Cable Jacket

PVC CM

Cable Length

1000ft (305m)

Reference Bandwidth

550MHz

Data Rate Support

10/100/1000Base-T

Wire Gauge

26AWG

Conductor Type

Stranded Pure Bare Copper

Conductor Diameter (mm)

0.480 ± 0.005

Cable Outer Diameter (mm)

6.1 ± 0.40

Maximum Installation Tension (N)

70

Bend Radius (mm)

26

Cable Color

Black

Standard

ISO/IEC 11801, ANSI/TIA-568.2-D

Operating Temperature

-20 to +75°C (-4 to 167°F)

Installation Temperature

-10 to +50°C (-14 to 122°F)



Product Highlights

Innovative Craftsmanship for Maximum Performance and Security



How to Select CM, CMR and CMP Cable?

Ethernet cable jacket rating comes in different types and materials. It's important to know the differences between CM, CMR and CMP cables because each different type is used in difference locations.





Reliable Quality and User-friendly Design



Easy Installation with RJ45 Connectors and Toolless Keystone Jack

Wiring Codes T568A and T568B are both allowed under the ANSI/TIA-568-C wiring standards. The only difference between T568A and T568B is that the orange and green pairs are interchanged.


Multi-Scene Application

Enjoy maximum flexibility to meet unique system requirements. Ideal for multiple network application.
