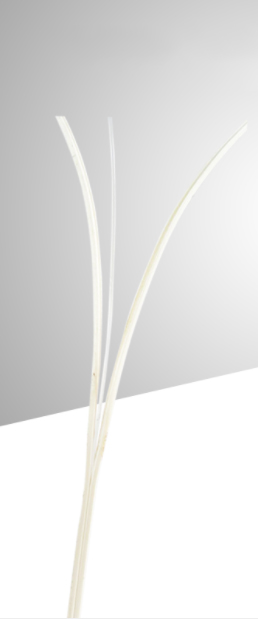

Indoor Cabling Invisibility Bow-Type Drop Cable (GJXJH, GJXFJH)
    Publish time 2021-10-27 16:11
Indoor Cabling Invisibility Bow-Type Drop Cable (GJXJH, GJXFJH)

Product Description:

GJXJH (Tightbuffer fiber structure, Metal strength member, LSZH sheath, NonSelf-Supporting)

GJXFJH(Tightbuffer fiber structure, Non-metal strength member, LSZH sheath, NonSelf-Supporting)

Standards:

YD/T1997-2009  Bow-type drop cable for accessnetwork

YD/T1258-2005  Indoor fiber optical cable

Technical Parameters(Typical Value):


Type

Fiber Count

Specifications
    (mm)

Weight (kg/km)

Tensile(N)

Crush(N)

Bending   Radius(mm)

Long term

Short term

Long term

Short term

Static

 Dynamic

GJXH

1

2.0×3.0

9. 9

100

200

1000

2200

15

30

GJXFH

1

2.0×3.0

7. 9

100

200

1000

2200

15

30

Note:

1.The relevant technical Parameters canbe adjusted according to the customer’s demands;

2.PVC and other material can be used assheath according to the customer’s demands.
