Product Description:

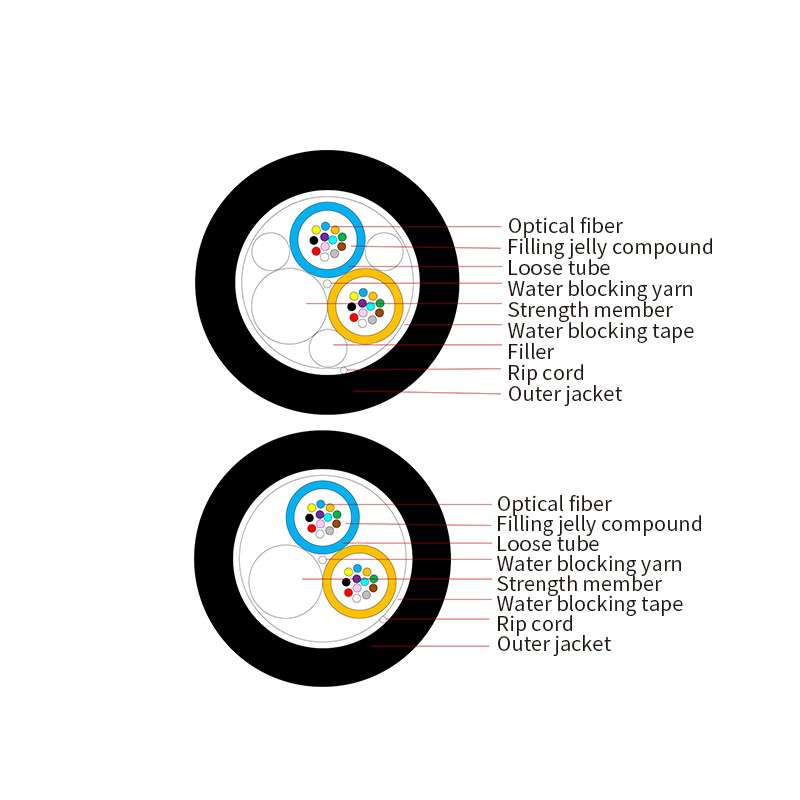

GYFY(0+3 structure、Non-metal strength member、Half dry water-blocking、PE sheath)
Standards:
YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications
Technical Parameters(Typical Value):
Fiber Count | Structure | Diameter | Weight | Tensile(N) | Crush(N) | Bending Radius(mm) | |||
(mm) | (kg/km) | Long term | Short term | Long term | Short term | Static | Dynamic | ||
4-12 | 0+3 | 8 | 45 | 300 | 600 | 300 | 1000 | 10D | 20D |
24 | 0+3 | 8.4 | 50 | 300 | 600 | 300 | 1000 | 10D | 20D |
Note:
1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
3.The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.
