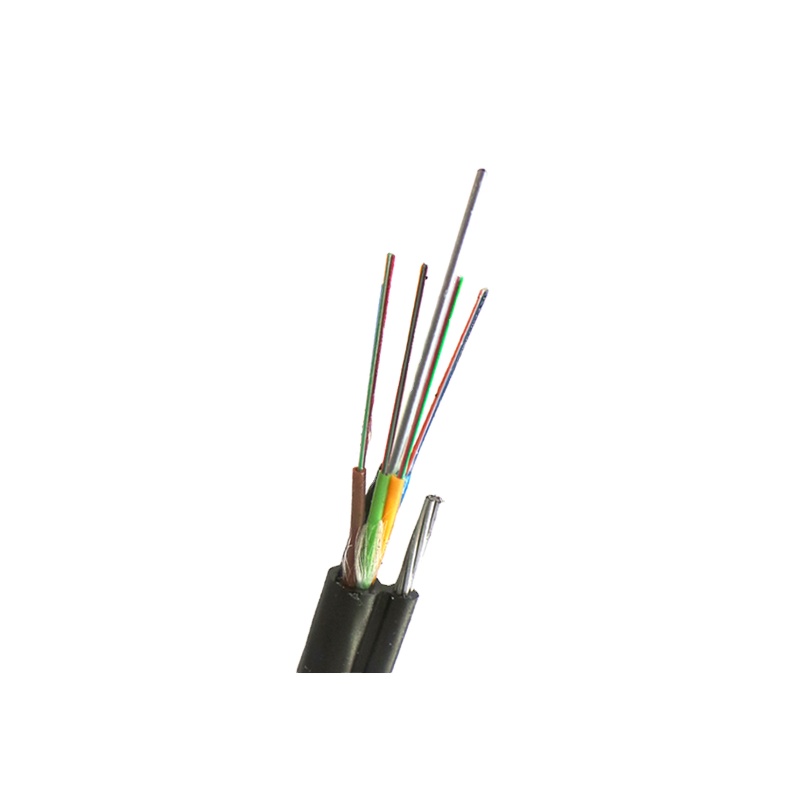

Product Description:

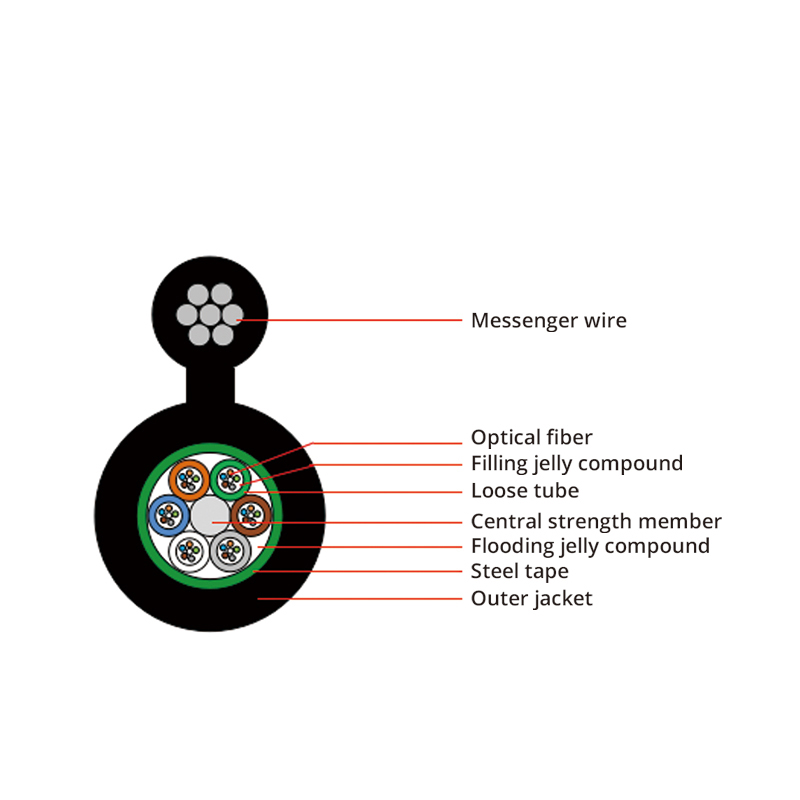

GYTC8Y (Loosetube stranding, Metal strength member, Flooding jelly compound, PE sheath, ‘8’layer)
Standards:
YD/T1155-2011 ‘8’ layer Self-Supportingoptical cable for telecommunications
Technical Parameters(Typical Value):
| Fiber Count | Structure | Diameter | Weight | Tensile(N) | Crush(N) | Bending Radius(mm) |
| (mm) | (kg/km) | Long term | Short term | Long term | Short term | Static | Dynamic |
| 2-30 | 1+5 | 8. 2×15. 1 | 126 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 32-36 | 1+6 | 8. 6×15. 5 | 139 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 38-60 | 1+5 | 8. 8×15. 7 | 135 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 62-72 | 1+6 | 9. 4×16. 3 | 155 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 74-84 | 1+7 | 10. 3×17. 2 | 166 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 86-96 | 1+8 | 10. 9×17. 8 | 177 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 98-108 | 1+9 | 11. 5×18. 4 | 188 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 110-120 | 1+10 | 12.2×19. 1 | 202 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 122-132 | 1+11 | 12.8×19. 7 | 216 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
| 134-144 | 1+12 | 13.5×20. 4 | 231 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
Note：
1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
