Product Description:

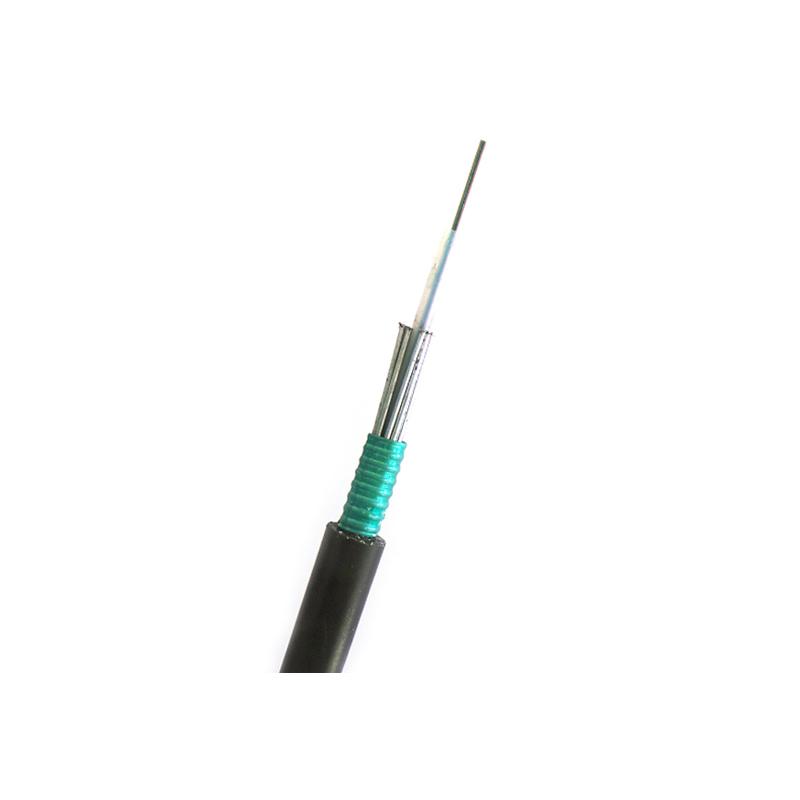

GYXS (Structurewith central tube, Steel wire armoring, Steel-polyethylene adhesive sheath)
Standards:
YD/T769-2010 Outdoor central tube opticalcable for telecommunications
Technical Parameters(Typical Value):
Fiber Count | Structure | Diameter | Weight | Tensile(N) | Crush(N) | Bending Radius(mm) |
(mm) | (kg/km) | Long term | Short term | Long term | Short term | Static | Dynamic |
2-12 | Central tube | 9. 4 | 128 | 600 | 1500 | 300 | 1000 | 10D | 20D |
16-18 | Central tube | 9. 8 | 140 | 600 | 1500 | 300 | 1000 | 10D | 20D |
20-24 | Central tube | 10. 0 | 149 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Note：
1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
