Publish time 2021-10-23 12:00

Product information

Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

This is a handheld microscope specifically designed for fiber optic connector end face inspection.

Features

*FC/SC/ST/E2000/LC/MU/MPO compatible

*3.5-inch TFT display

*Up to 200x overall magnification

*4x digital zoom

*SD card storage up to 8G

*Snapshot, video recording and playback

*180° image rollovers

*Flashlight function

Product Description

1. Main Unit

2. Probe

3. Standard adaptor

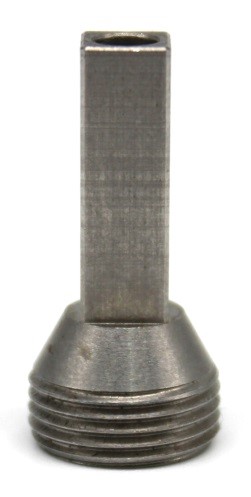

2.5mm tip for PC male connectors	1.25mm tip for PC male connectors	Tip for SC/PC female connectors	Tip for LC/PC female connectors

Operation

1、Probe installation

Specifications

Mainframe
Display	3.5" LCD
Video resolution	AVI (640x480)
Photo resolution	JPEG (640x480)
Image / Video Storage	8GB TF card
Image rollovers	180°
Image magnification	4x zoom magnification
Dimensions	145mm x 90mm x 35mm
Weight	300g
Power Supply	Replaceable battery or universal input 5V DC adapter
Battery	Rechargeable Li-Ion,5V/1A, 2600mAh
Battery life	> 4 hours (continuous)
Menu language	Simplified Chinese, English, French, German, Spanish, Japanese, Russian
Operating Temperature	-20°C to 50°C
Storage Temperature	-30°C to 70°C

Standard Accessories
Inspection Probe	x 1
Mainframe	x 1
AC power adapter/battery charger	x 1
Rechargeable battery pack	x 1
Protective sleeve	x 1
Mainframe Stents	x 1
2.5mm tip for PC male connectors	x 1
1.25mm tip for PC male connectors	x 1
Tip for SC PC female connectors	x 1
Tip for LC PC female connectors	x 1
Tip box	x 1
User Manual	x 1
Carrying case	x 1

Inspection Probe
Magnification	400X (9’’ monitor); 200 X (3.5’’monitor)
Detection Limit	0.5μm
Focus Control	Manual , in-probe
Dimensions	150mm x 40mm x 45mm
Weight	120g
