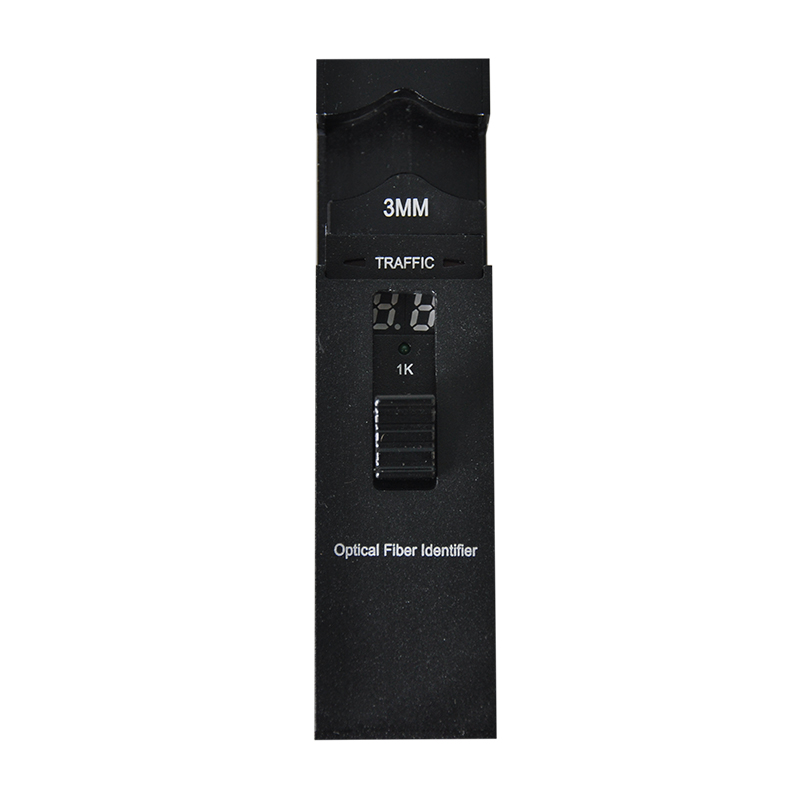

3306C Optical Fiber Identifier is equipped with the function of low frequency signal detection. It can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. It can be used to detect in anywhere of SM and MM fiber. When the traffic is present,the intermittently audible tone is activated.The 3306C optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The 3306C optical fiber identifier is powered by a 9V alkaline battery .
Product Description
*Identify the direction and frequency of the light without stopping operation.
*Easy-to-use with “ONE KEY” operation.
*Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
*Displays the relative core power.
*Detect low frequency signals of 3306CT.
*Easy-to-replace adaptors.
*Battery indication:change the battery if there is a low battery indication.
*Digital tube and LED indicator light.
Specifications
Type | 3306C | |
Identified Wavelength Range | 800-1700 nm | |
Identified Signal Type | CW, 270Hz，1kHz，2kHz | |
Detector Type | Ø1 InGaAs 2pcs | |
Adapter Type | Ø0.25 (Applicable for Bare Fiber)，Ø0.9 (Applicable for Ø0.9 Cable ) | |
Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) | ||
Signal Direction | Left & Right LED | |
Singe Direction Test Range | -20~10(1310nm) | |
-30~10(1550nm) | ||
Signal Power Test Range | -30~+10dBm | |
Signal Frequency Display (Hz) | 270, 1k, 2k | |
Frequency Test Range(dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
Ø0.25 | -25~0 (270Hz,1KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battery(V) | 9V | |
Operating Temperature(℃) | -50 | |
Storage Temperature(℃) | -80 | |
Dimension (mm) | 209X33X31 | |
3306CT | ||
Signal type | 1HZ low frequency signal | |
Signal Mode | Mechanical vibration | |
Insertion loss | <1 dB(1310) | |
Fiber external diameter | Ø0.9, Ø2.0, Ø3.0 | |
Standard Packages
MODEL | INCLUDES |
3306C | 3306C Optical Fiber Identifier, 4pcs adapter heads, Sunshade, |
Alkaline battery, User Manual, Cotton Stick and Soft Carrying case. | |
