fusion splicer adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, LCD monitor displays all steps of fiber fusion clear at a glance. Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less. Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications. Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, English etc.
Product Description
* High-resolution true color 5.7 inch LCD display
* The advanced core to core fiber profile alignment system(PAS)
* Real time calibrating system ,parameter needn’t be adjusted
* X/Y axes were displayed meanwhile, Magnification up to 304 times

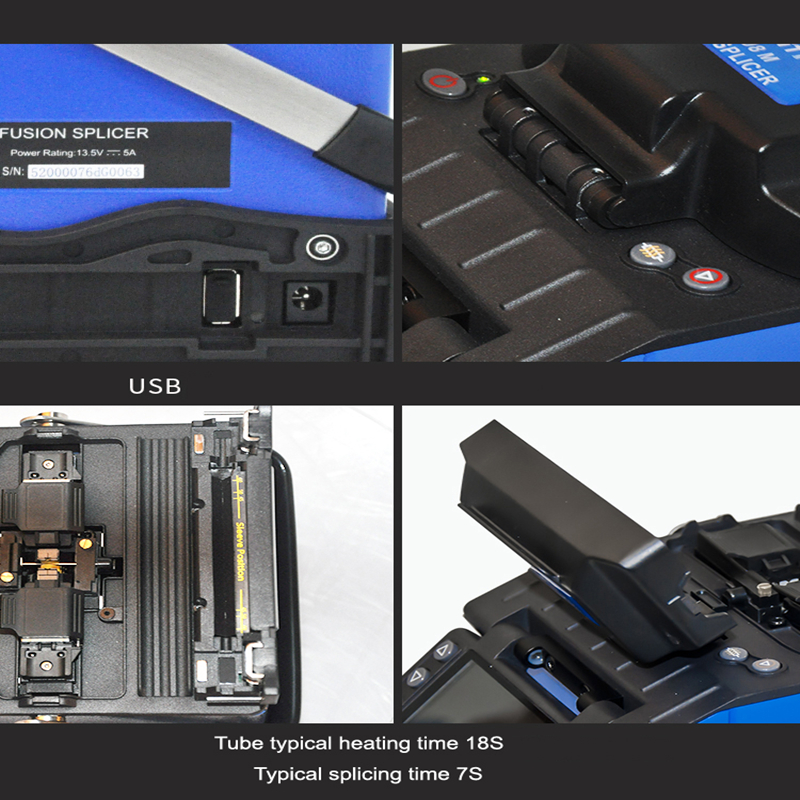

* 8 seconds splicing time, 30 seconds Heat-Shrinking
* Battery capacity was display in real time, precisely
* Built-in high capacity battery, support 220 times splicing and heating, to meet one days’ work
* Long Electrode Lifetime, up to 4000 times
* The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s
* Three Splicing modes: auto, half-auto, manual
* Built-in super high-brightness LED supply convenience for night work
* Auto calculate splicing loss
* Small bulk and light weight, only 2.8kg include battery
* 4000 results Storage
* USB data interface &VGA
* One button operation to finish results download or software update
* Close shield splice automatically, Close heater lid heat automatically
