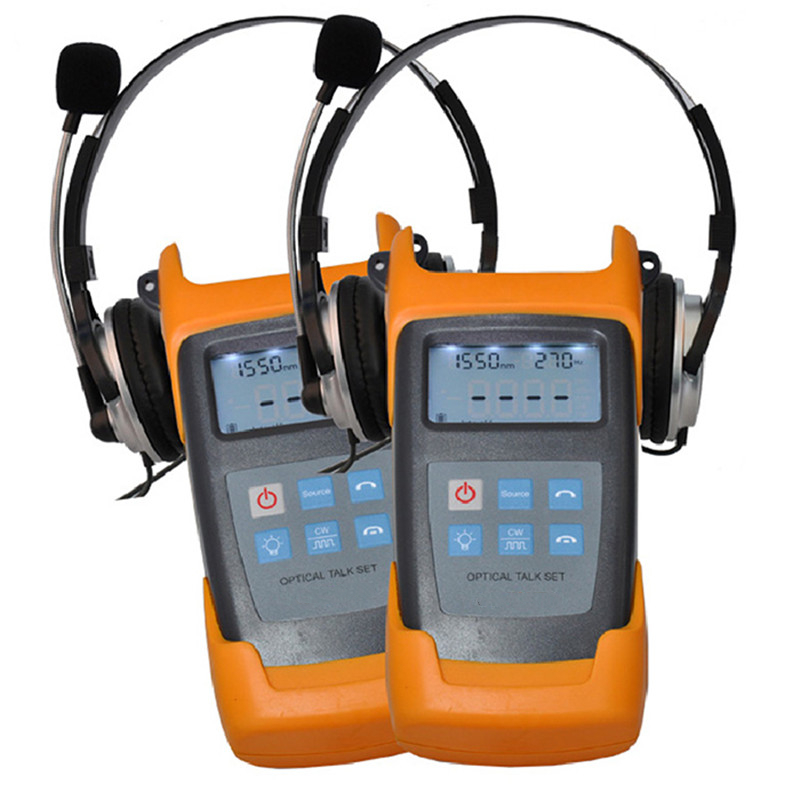

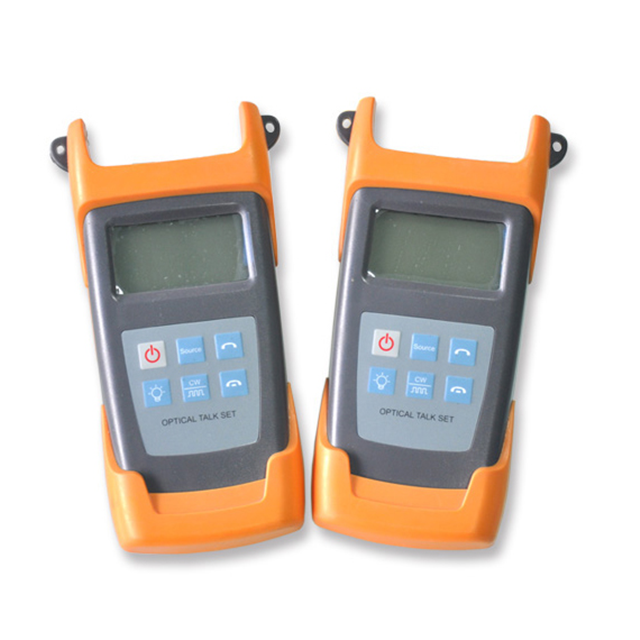

The 4103N Fiber Optic Talk Set is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The 4103N Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance
Product Description
* High-resolution true color 5inch LCDdisplay
* Full-duplex digital communication with high quality conversation connection and low background noise
* Together with Optical Clip-on Coupler, enables on line communications available
* Combining functions of both a digital optical phone call and a stabilized light source
* Large LCD display with backlight
* Low battery power indication
Application
* Maintenance in Telecom
* Maintenance CATV
* Fiber Optic Lab Testing
* Other Fiber Optic Measurements
Specifications
4103N | |
Wavelength(nm) | 1310/1550 |
Emitter Type | FP-LD |
Transmission Distance(KM) | ≥100 |
Dynamic Range(dB) | ≥ 33 |
Output Power(dB) | -5~-7 |
Modulation(Hz) | CW,270,1K,2K |
Output Stability (dB,30min,20 °C ) | ≤ 0.1 |
Power Supply | 3 pcs 1.5V Alkaline Batteries/8.4V Power Supply Adaptor |
Battery Operating Time | 5 hours |
Optical Connector | FC/PC |
Operating Temperature(°C) | -10 ~ +60 |
Storage Temperature(°C) | -25 ~ +70 |
Dimension(mm) | 298*220*85 |
Weight(g) | 980g |
Standard Packages | Optical Talk Set (pair) |
Remark: provides Fiber Optic Clipon Coupler device according to customers needs | |
Standard Packages
MODEL | INCLUDES |
4103N | Optical Talk Set (pair), Headset, 3 pcs 1.5V Alkaline Batteries, 8.4V Power Supply Adaptor, User Manual, Cotton swabs and soft carrying case. |
